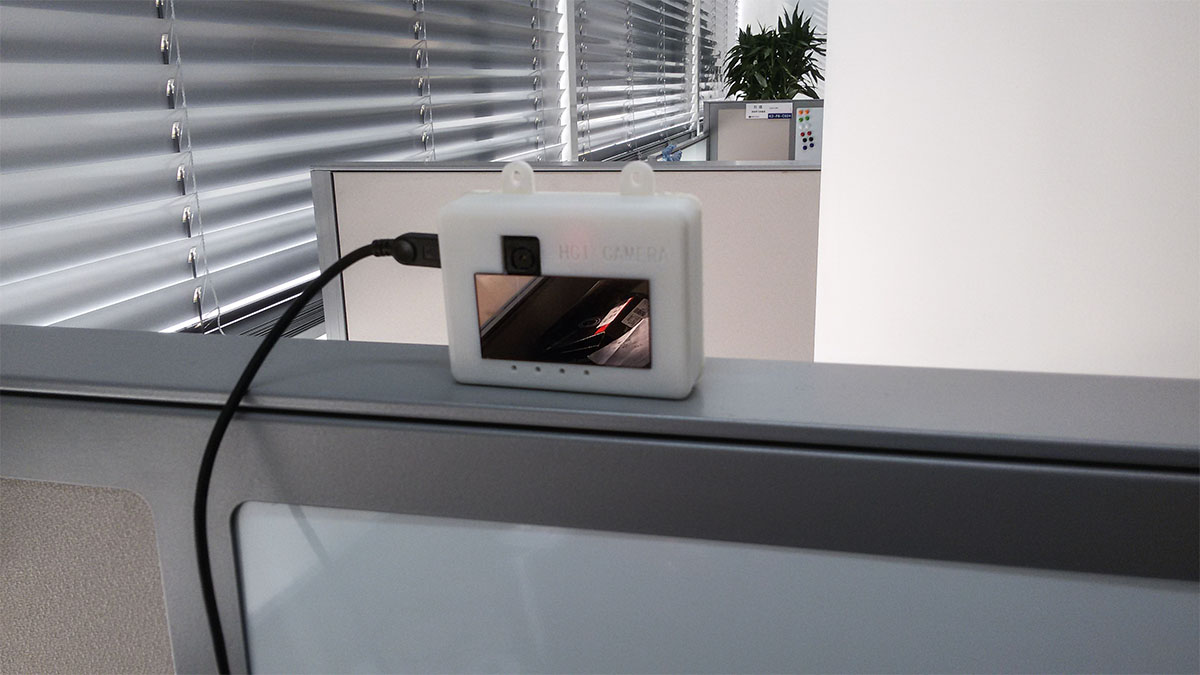

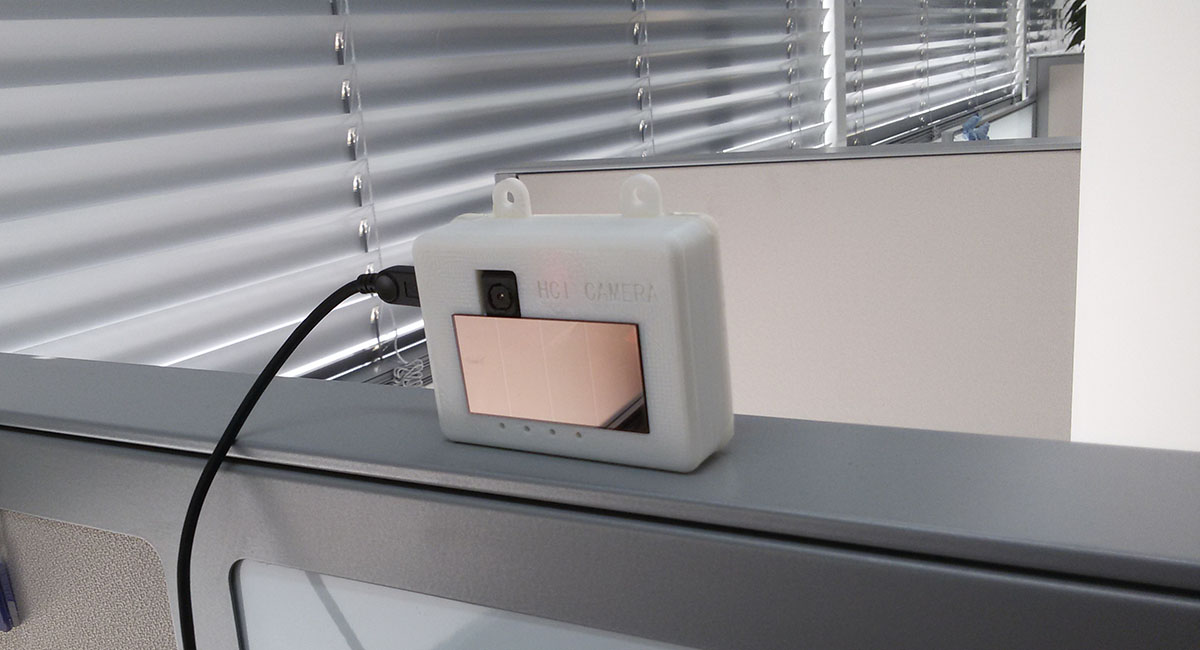

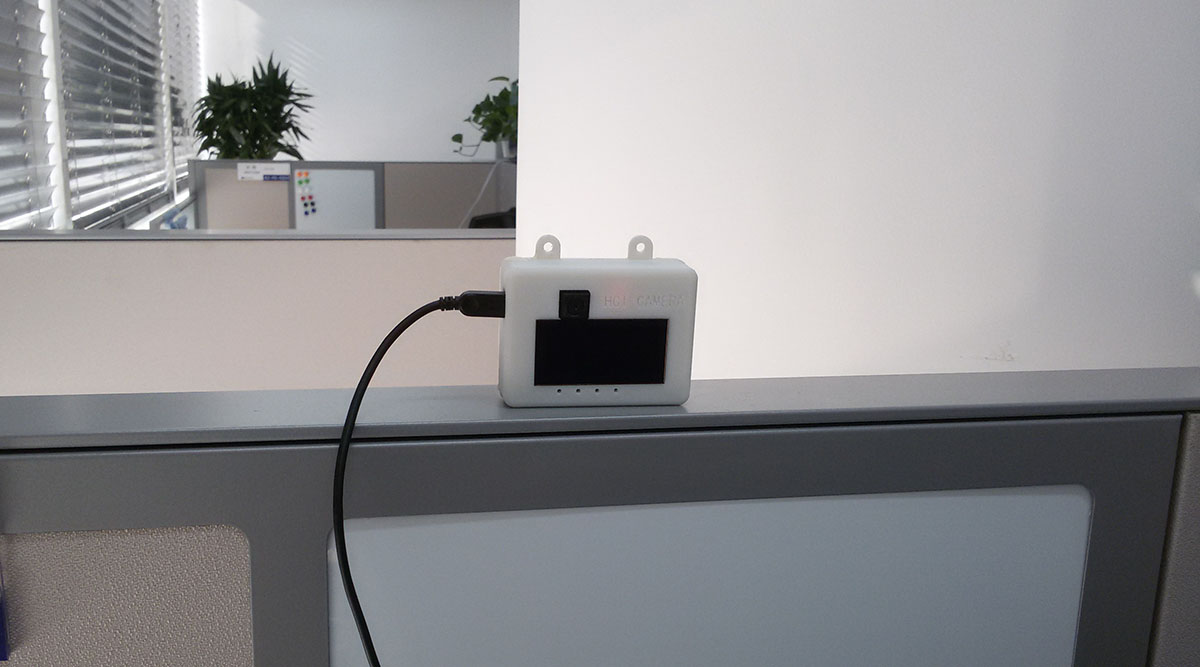

The solar-powered wifi camera has the built-in amorphous silicon solar panels, CC3200 wifi module, CPLD, SRAM, 200W-pixel camera and lithium battery.
The silicon photocell absorbs weak solar energy, supplies and charges the lithium battery through the booster circuit, drives the ARM Cortex M4 and CPLD to work, reads and encodes the camera data and transmits it through the wifi connection.
The camera can realize periodic image and video transmission without charging, which is used in the field of passive wireless monitoring.
The camera can be automatically connected to the router, and then accesses the specified URL. Users can modify the camera settings, and read videos and images through the server-side program.
The solar-powered wireless camera is designed with ultra-low-power solutions and devices, ensuring very low sleep power (<100uA) and very low burst transmission power (<20mA).
  • Project Type: Design
  • Fields: Education, Laboratory, DIY
  • Introduction: Solar WIFI Camera
  • Project Year: 2016
