JSAN CNC Router Controller

$99.0

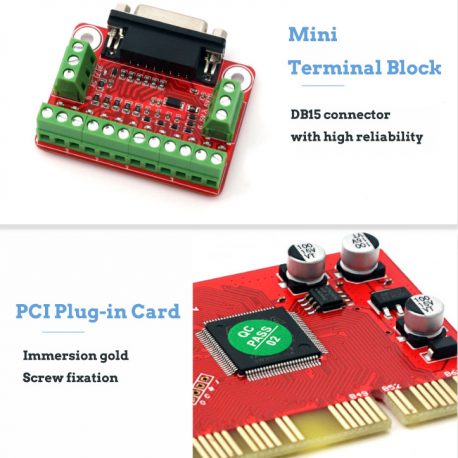

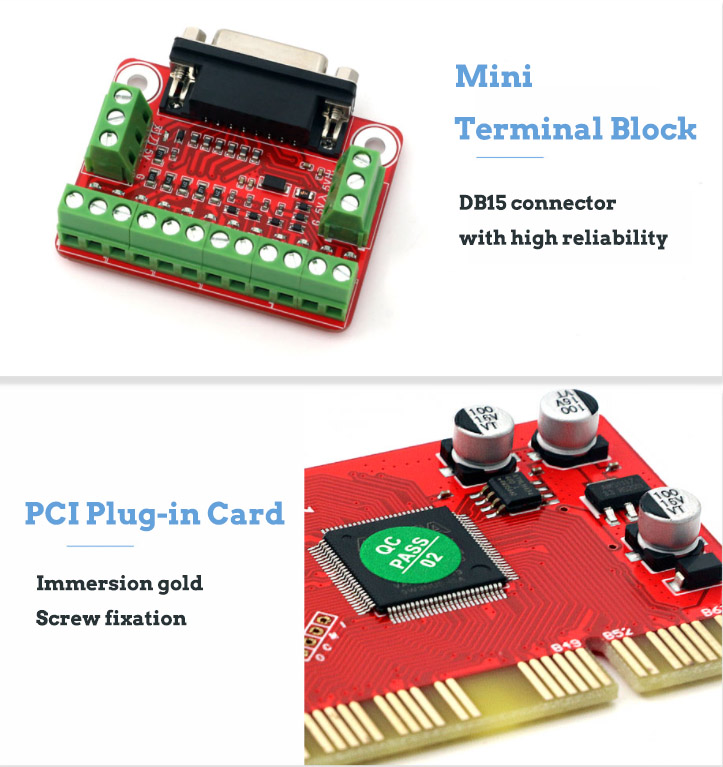

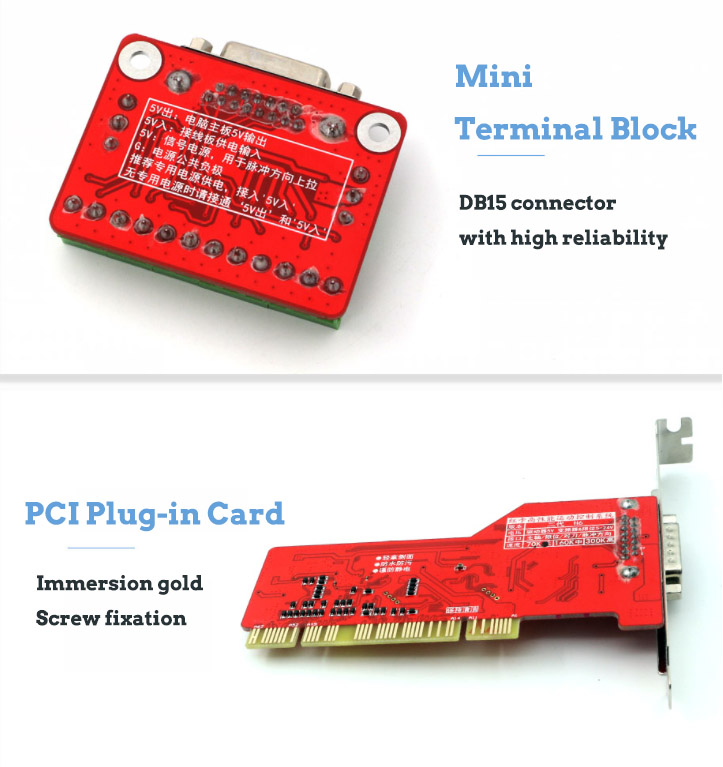

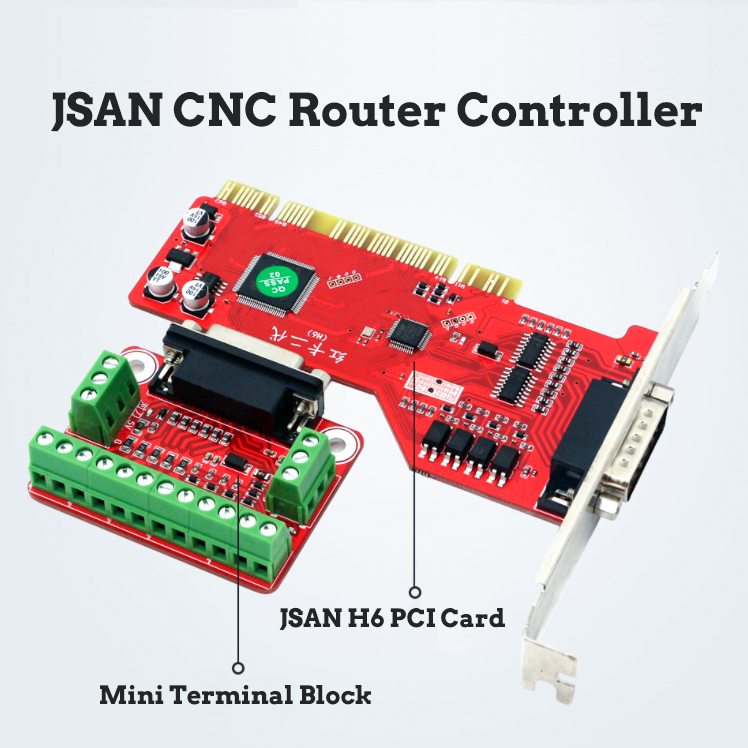

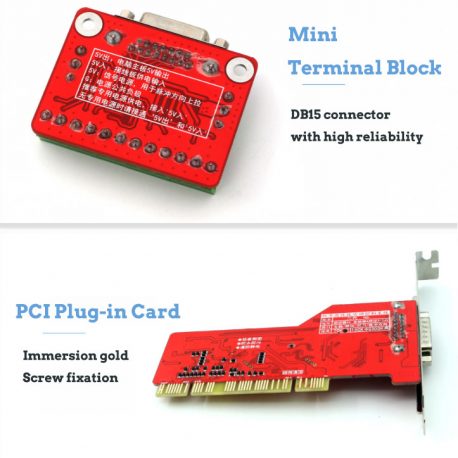

The JSAN H6 control card (low-cost version) includes the main card and the mini terminal block board. The pulse/direction signal speed of the three channels is all up to 70KHz, and the motion control software is not included.
Category: Tags: ,

Description

JSAN H6 series control cards are widely used in the CNC industry.
①Advanced system architecture: CPLD + STM32
②Excellent performance: up to 1MHz pulse baudrate (electrical limit), interpolation rate up to 70KHz
③Enhanced output characteristics: XYZE pulse/direction/spindle signal, up to 50mA drive current (can also be specified up to 200mA)
④More voltage level support: [XYZE pulse/direction/spindle/limit input/tool setting input] ports support 5V-24V drive mode (built-in 5V, other voltages require the standard terminal block and external power supply), covering the commonly used voltage levels of 5V/12V/24V
⑤Better protection against short circuit/misconnection/static electricity
⑥High-speed digital communication interface: can be used to connect the main card to the adapter board, multi-process driver board, extended operation board, compatible protocol drivers and inverters, etc.
⑦Analog spindle signal output: (5V/10V optional) hardware support
For more information, please refer to the H6 project introduction.
