JSAN H6 Handwheel

$15.0 – $35.0

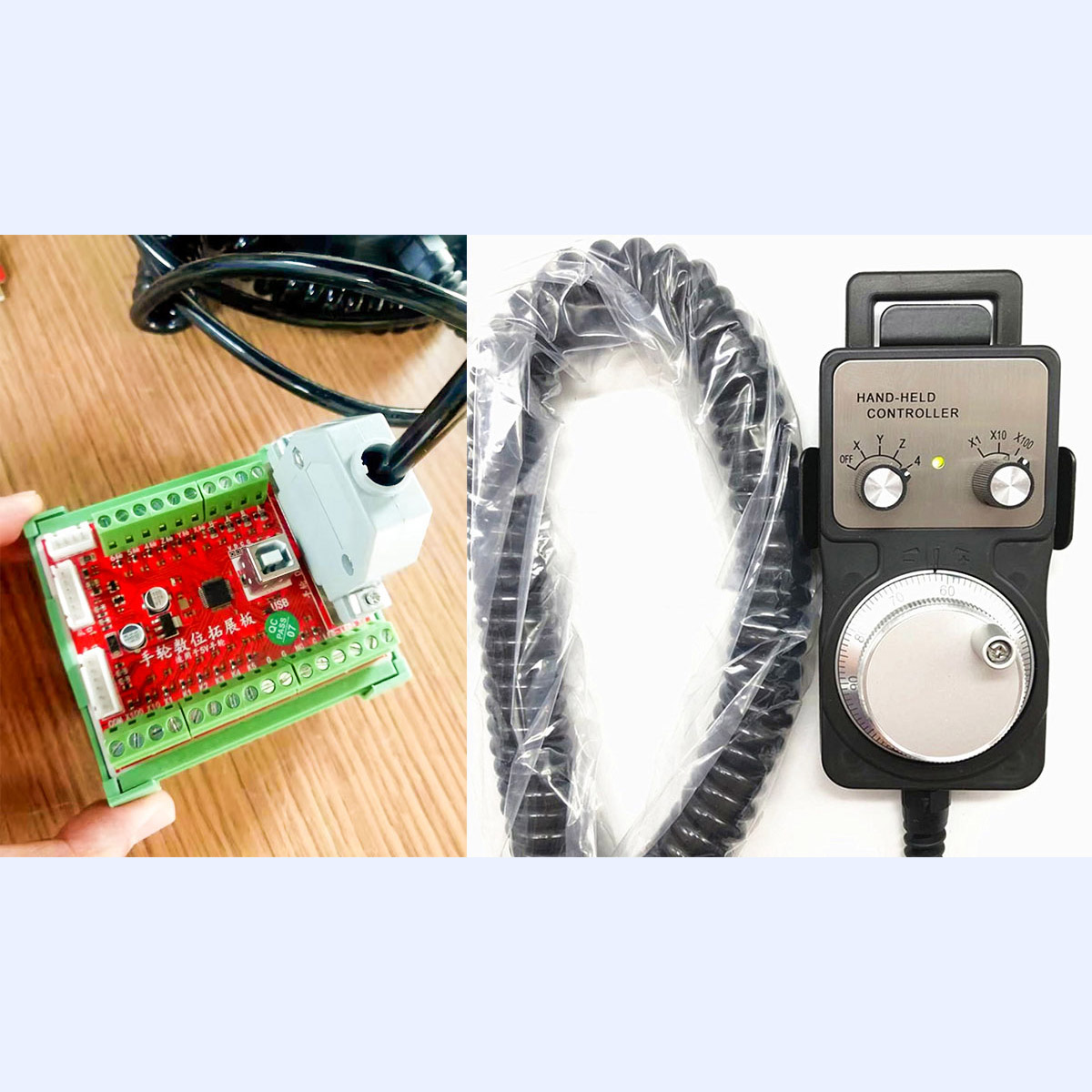

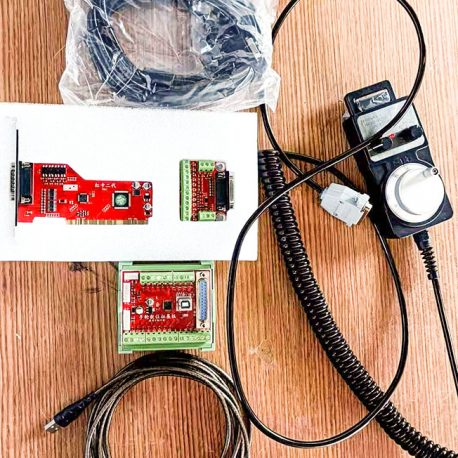

Handwheel module for H6 control card series. (including the controller, handwheel and 5m data cable)
① It is used for large-scale engraving machine movement operation and tool setting.
② It is used for real-time dynamic fine-tuning during the engraving process.
Clear selection
SKU: N/A Category: Tags: , ,

Description

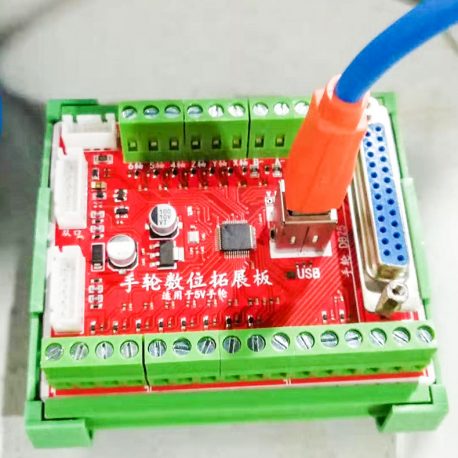

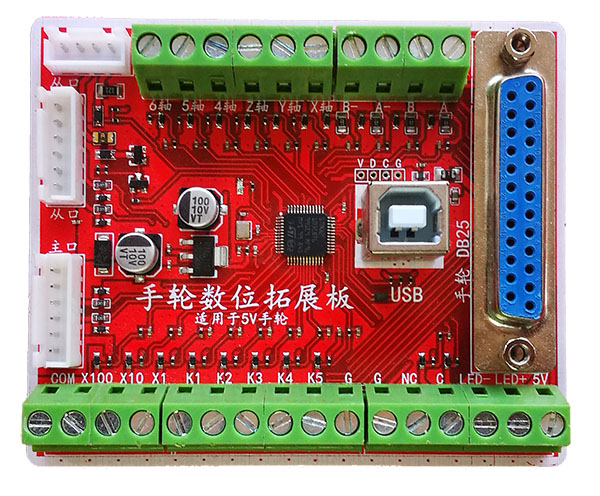

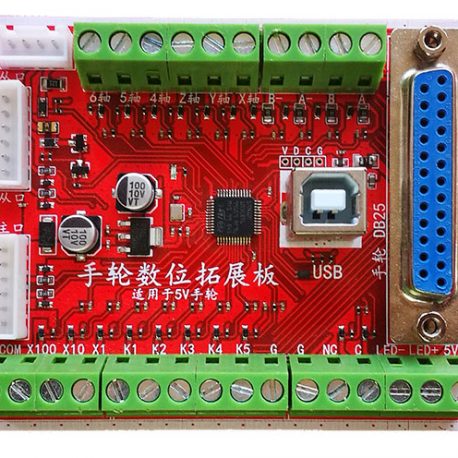

The controller is connected to the PC host through the USB interface and connected to the handwheel handle using the DB25 cable.
The HID protocol supports completely free driver and supports plug and play.
Through the switch, the user can select the motion axis and select the scale scaling ratio.
① It is convenient for fine adjustment and tool setting of large-scale machine movements.
② It is used for real-time dynamic fine-tuning during the engraving process.

Additional information

Weight 1 kg
Brand

HongX JSAN
Color

Red
Packages

Handwheel Controller, Handwheel, Double
