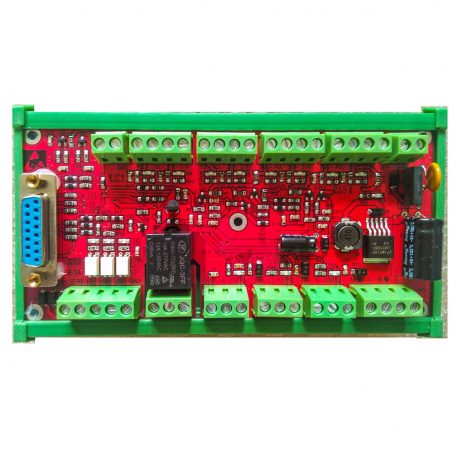

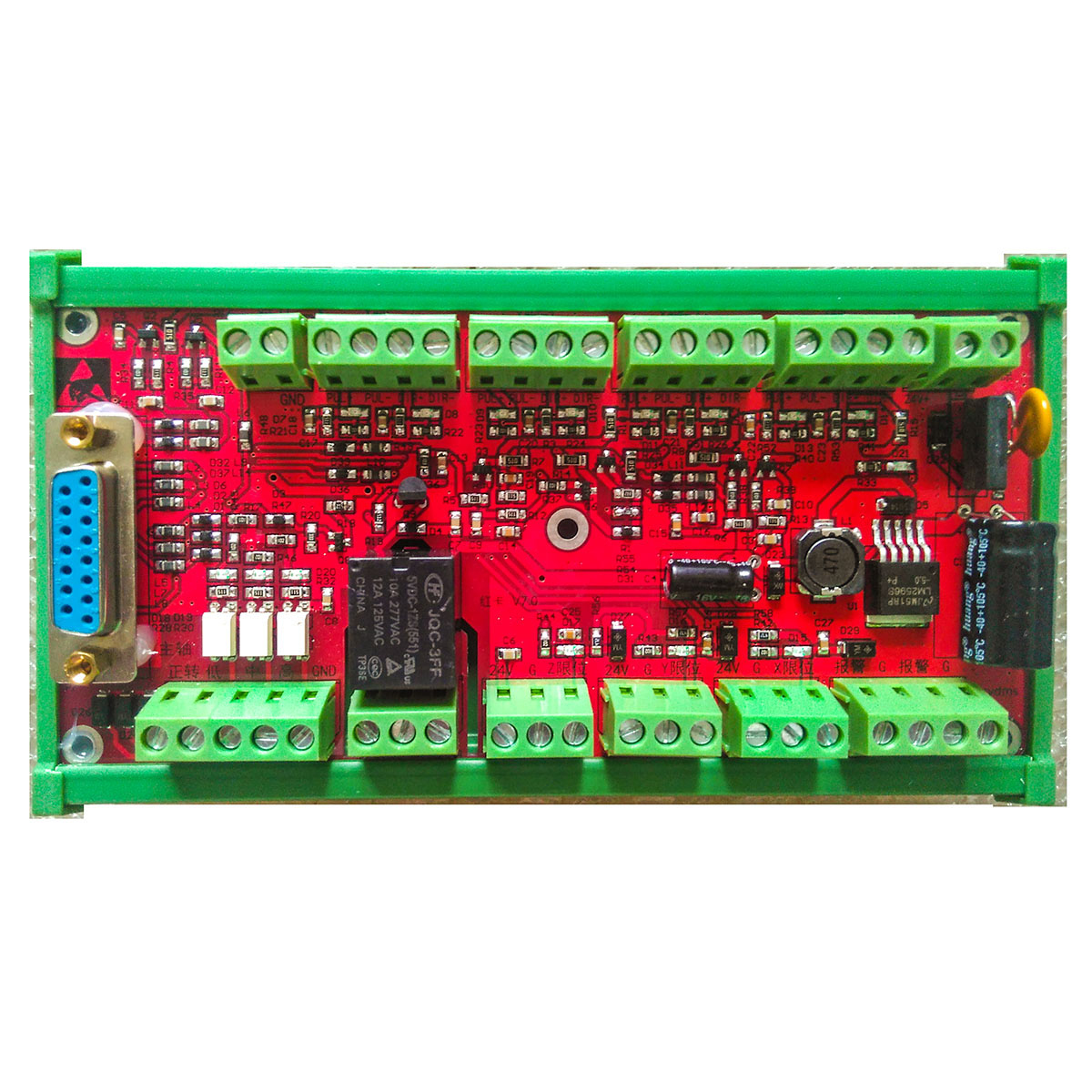

Standard wiring/signal distribution board for JSAN H6 control card.
Applicable to JSAN H6 control card (low-cost / high-speed version). The maximum pulse/direction signal speed of the low-cost version is 70KHz, while the maximum speed of the high-speed version is up to 160KHz.
The card provides the direction/pulse signal output (5V), the limit signal input (5-24V), the tool setting signal input (5-24V), and the spindle signal output (three-stage 5-24V).
Provides IO ports to drive relays (requires an external 24V DC power supply).
For more details, please refer to H6 series control card.
Additional information
Weight
1 kg
Brand
HongX JSAN
Color
Red
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
HX DLM-25 digital ruler (engraver levelling assistant) is used in machine tools, engraving machine leveling and tool setting and other fields that require automated measurement.
In the field of stone processing, DLM-25 is used to measure the ups and downs of the stone surface to correct the movement path of the engraving machine.
The DLM-25 digital ruler has a measurement accuracy of one thousandth of a millimeter and an effective travel of 25 mm.
It supports wireless and wired measurement, and contains 2.45GHz wireless module and lithium battery inside.
The 20W/30W desktop fiber laser marking machine is widely used in surface engraving or marking of both metal and non-metal materials such as bearings, instruments, flanges, valves, electronic components, communication equipment, mobile phone accessories, jewelry, auto parts, precision machinery, etc.
Working area: 110mm*110mm
Minimum line width: 0.5mm
Laser wavelength: 1060nm
Marking speed: <7000mm/s
Cooling method: air cooling
Handwheel module for H6 control card series. (including the controller, handwheel and 5m data cable)
① It is used for large-scale engraving machine movement operation and tool setting.
② It is used for real-time dynamic fine-tuning during the engraving process.
JSAN H6 series control cards are widely used in the CNC industry.
The JSAN H6 control card (low-cost version) includes the main card and the terminal block board. The pulse/direction signal speed of the three channels is all up to 70KHz, and the motion control software is not included.
Package 1 is the main card and mini terminal block.
Package 2 is the main card and standard terminal block.
not rated
$1900.0 – $2200.0
Select options
not rated
$99.0 – $110.0
Select options
