Repeatedly winding coils in the lab is a time-consuming job, and hand-wound coils are often too loose and messy.

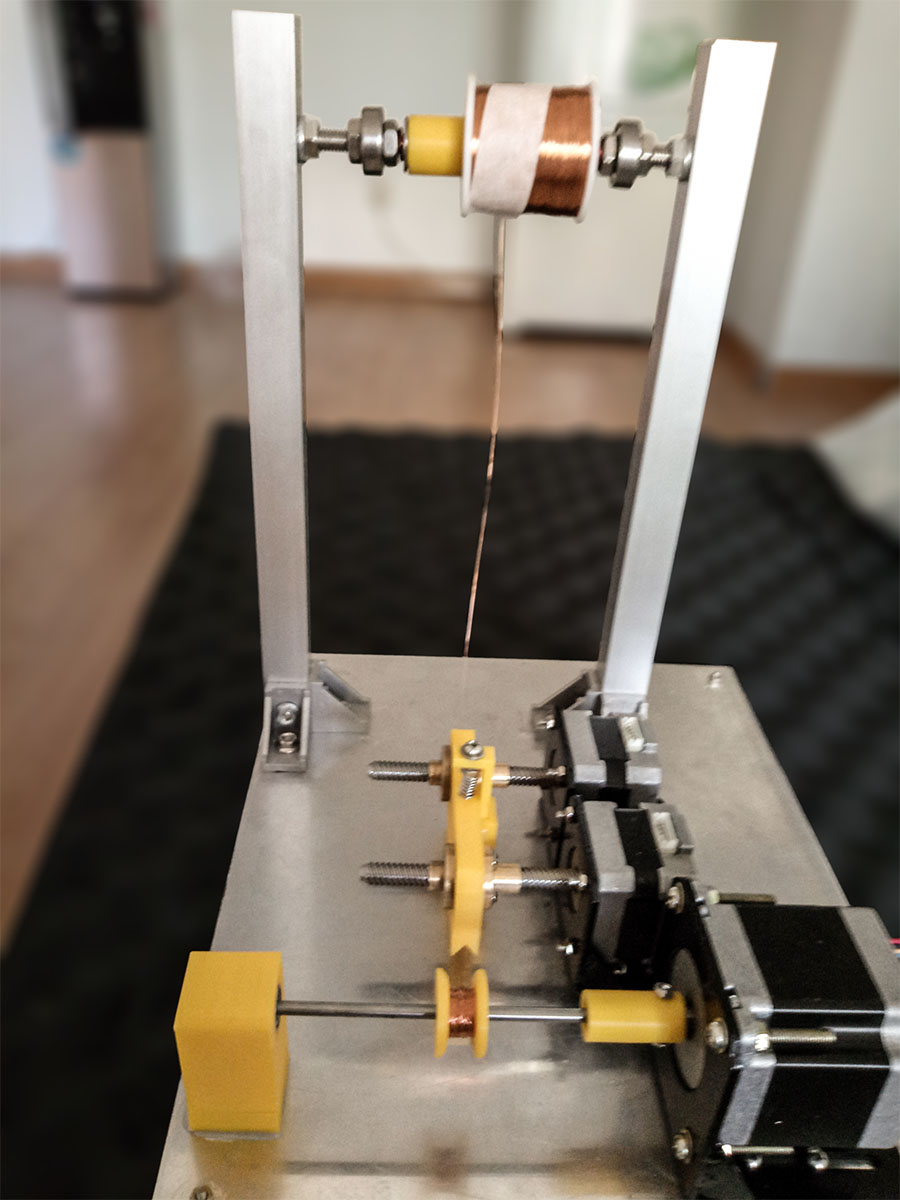

We made this coil winding device, which can realize automatic winding by setting the parameters of winding coils.

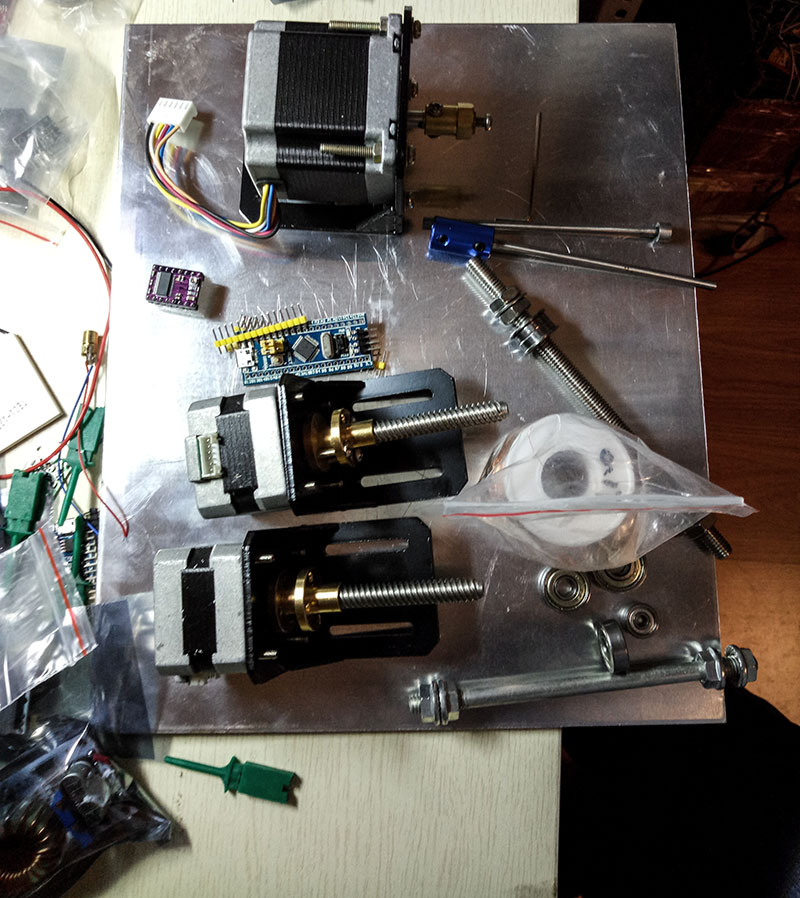

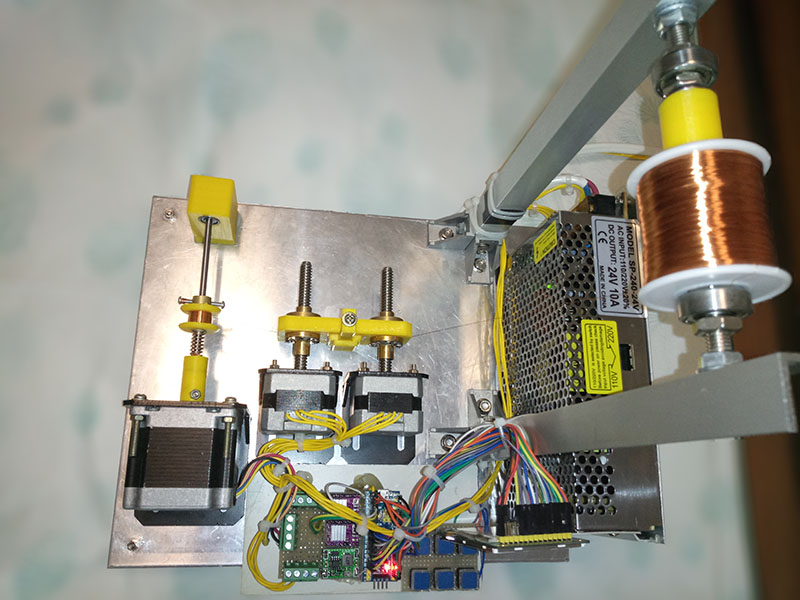

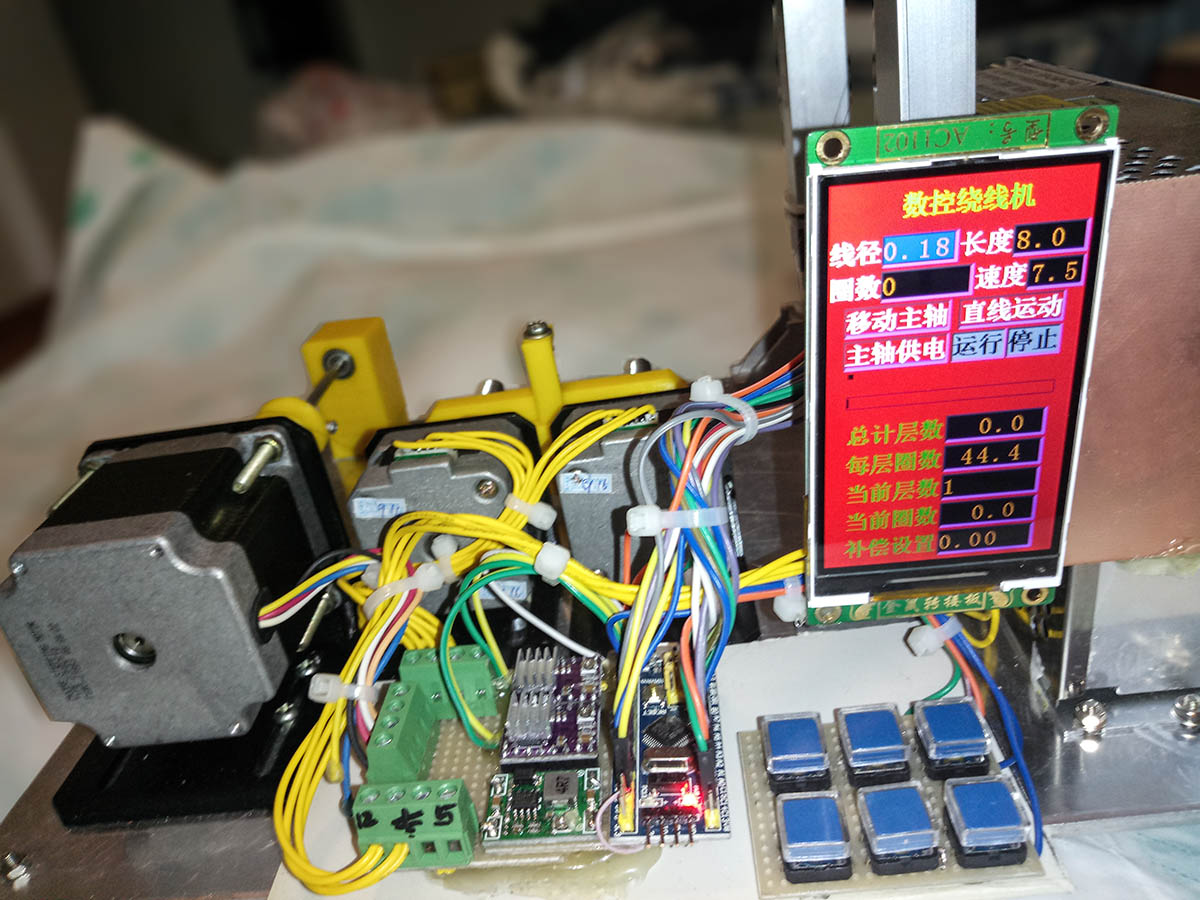

We use a 42 stepper motor as the reciprocating motion control; use a 57 stepper motor to drive the reel to rotate; and use stm32f103c8t6, DRV8255, LCD screen and keyboard to make the control system.
